Moteur lave glace avant ix 55


Post new topic   Reply to topic    Forum HYUNDAI IX et Cie depuis 2009 Forum Index -> ► IX 55 ( VERACRUZ) ◄ -> Le IX 55 de A a Z -> Discussions • Questions à propos du IX 55
Previous topic :: Next topic
Author Message
Amaury


Offline

Joined: 19 May 2017
Posts: 10
Masculin Scorpion (23oct-21nov)

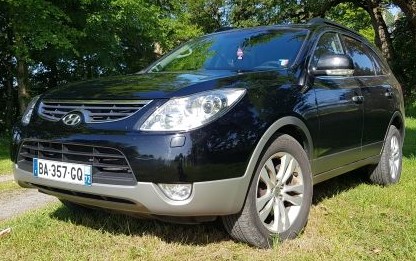

Vh actuel / Année: Hyundai ix 55
Motorisation: 3.0 V6 240cv
Finition/Teinte: Vera cruz / Noire
2wd-4wd-awd: 4WD
Pneus été/hiver/Dim: mixte
Coyote ou similaire: Waze

PostPosted: Thu 16 Aug 2018 - 23:52    Post subject: Moteur lave glace avant ix 55 Reply with quote

Salut à tou(te)s,


Sur mon ix55, je n'ai plus aucun fonctionnement du moteur du lave glace des essuies glaces avant. Shocked


J'ai "cheké" les deux fusibles concernés (15 A et 30 A) et ils sont bons.


Mise à part démonter le passage de roue avant droit pour tenter de trouver le moteur, je sèche..


Merci pour vos lumières.


Salutations Coréennes..


Amaury

Carpe Diem


Back to top
Publicité






PostPosted: Thu 16 Aug 2018 - 23:52    Post subject: Publicité

PublicitéSupprimer les publicités ?
Back to top
Hermine
Repreneur/sauveteur ancien site ACEBOARD années 2001 et Administrateur/Administratrice

Offline

Joined: 18 Sep 2009
Posts: 13,519
Féminin Vierge (24aoû-22sep)

PostPosted: Mon 20 Aug 2018 - 16:27    Post subject: Moteur lave glace avant ix 55 Reply with quote

 regarde sur ce lien de vues éclatées où tu trouveras aussi en même temps la référence OEM du moteur.
Par contre, j'ai mis 2007 car l'année de ton IX55 (Veracruz) n'est pas renseignée dans ton profil  ^^ :


https://www.jimellishyundaiparts.com/showAssembly.aspx?ukey_assembly=418802&ukey_make=1033&ukey_model=14691&modelYear=2008&ukey_category=19635







J'aurai beau tricher et fermer les yeux de toutes mes forces, il y aura toujours un chien perdu quelque part qui m'empêchera d'être heureuse. Jean Anouilh


Back to top
Visit poster’s website
Hermine
Repreneur/sauveteur ancien site ACEBOARD années 2001 et Administrateur/Administratrice

Offline

Joined: 18 Sep 2009
Posts: 13,519
Féminin Vierge (24aoû-22sep)

PostPosted: Mon 20 Aug 2018 - 16:41    Post subject: Moteur lave glace avant ix 55 Reply with quote

Voici quelques procédures en anglais, elles concernent le Sfé II de la même génération que l'IX55.
J'espère que cela pourra te dépanner, je n'ai pas de doc sur le Veracruz/IX55


Remplacement du moteur avant :


Inspection
Front and Rear Washer Motor
1.With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
2.Connect positive (+) battery cables to terminal 3 and negative (-) battery cables to terminal 1 respectively.
3.Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
4.If they are abnormal, replace the washer motor.
[Front & Rear washer]
No.
Description
1
Ground
2
Windshield washer (+)
3
Rear washer (+)





Washer Fluid Level Sensor Switch
1.Disconnect the negative(-) battery terminal.
2.Drain the washer fluid less than 650 cc.
3.Check for continuity between the No. 1 and No.2 terminal in each float position.
There should be continuity when the float is down.
There should be no continuity when the float is up.
4.If the continuity is not as specified, replace the washer fluid level switch




Removal
-When servicing the washer pump, be careful not to damage the washer pump seal.
-Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.
1.Disconnect the negative (-) battery terminal.
2.Remove the front bumper cover.

3.Remove the washer hose and disconnect the washer motor connector and washer fluid level sensor connector.
4.Remove the washer motor (A).

5.Remove the washer reservoir after removing bolts (A).



Installation
1.Reassemble the washer reservoir.

Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.
2.Connect the washer motor connector and washer hose.
3.Install the washer reservoir.

Tightening torque (Bolt)
3.9 ~ 5.9 Nm (0.4 ~ 0.6 kgf.m, 2.9 ~4.3 lbf.ft)

4.Reassemble the front bumper cover.



--- --- ---


Removal
1.Loosen the windshield wiper arm nut after removing a wiper cap (A).
2.Remove the windshield wiper arm and blade (B)

3.If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm.

4.Remove the cowl top cover.

5.Disconnect the wiper motor connector (A) from the wiper motor & linkage assembly.

6.Remove the windshield wiper motor and linkage assembly (A) after removing 3 bolts.

7.Hold the wiper motor crank arm and remove the upper linkage (A) from the wiper motor crank arm.


Before removing the wiper motor and linkage assembly, make sure that the linkage is stoped at auto stop position.
To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages.
Be careful not to bend the linkage.
8.Remove the lower linkage (A) from the wiper motor crank arm.


To install the wiper motor crank arm exactly, check that the linkage is aligned with the crank arm in straight line and the angle of each linkages.
Be careful not to bend the linkage.
9.Remove the crank arm (B) after loosening a nut (A).

10.Remove the bracket (A) after loosening the screws (3EA).

11.Remove the wiper motor (A) from the tube.



Installation
1.Install the wiper motor.
2.Install the crank arm.

Tightening torque:
12.7~17.6 Nm (1.3~1.8 kgf.m, 9.4~13.0 lbf.ft)


To install the wiper motor crank arm, make sure that the linkage is aligned with the crank arm in straight line and set the angle of each linkages exactly.
3.Install the lower and upper linkage to the wiper motor crank arm.

To install the wiper motor crank arm, make sure that the linkage is aligned with the crank arm in straight line and set the angle of each linkages exactly.
Be careful not to bend the linkage.
4.Install the wiper motor and linkage assembly and then connect the wiper motor connector.

Tightening torque:
6.9~10.8 Nm (0.7~1.1 kgf.m, 5.0~7.9 lbf.ft)

5.Install the cowl top cover.
6.Install the windshield wiper arm and blade.

Tightening torque:
22.5~26.5 Nm (2.3~2.7 kgf.m, 16.6~19.5 lbf.ft)

-The windshield wiper motor must be cycled to make sure that it is in the park position.
If necessary, adjust the wiper arm and blade.
7.Install the wiper arm and blade to the specified position.
A: Auto stop position (Blade)



Inspection
Speed Operation Check
1.Remove the connector (A) from the wiper motor.

2.Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1.
3.Check that the motor operates at low or high speed as below table.



Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a good cleaner or mild detergent, and rinse thoroughly with clean water.



Inspection/remplacement réservoir avant :


Inspection
Front and Rear Washer Motor
1.With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
2.Connect positive (+) battery cables to terminal 3 and negative (-) battery cables to terminal 1 respectively.
3.Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
4.If they are abnormal, replace the washer motor.
[Front & Rear washer]
No.
Description
1
Ground
2
Windshield washer (+)
3
Rear washer (+)





Washer Fluid Level Sensor Switch
1.Disconnect the negative(-) battery terminal.
2.Drain the washer fluid less than 650 cc.
3.Check for continuity between the No. 1 and No.2 terminal in each float position.
There should be continuity when the float is down.
There should be no continuity when the float is up.
4.If the continuity is not as specified, replace the washer fluid level switch




Removal
-When servicing the washer pump, be careful not to damage the washer pump seal.
-Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.
1.Disconnect the negative (-) battery terminal.
2.Remove the front bumper cover.

3.Remove the washer hose and disconnect the washer motor connector and washer fluid level sensor connector.
4.Remove the washer motor (A).

5.Remove the washer reservoir after removing bolts (A).



Installation
1.Reassemble the washer reservoir.

Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.
2.Connect the washer motor connector and washer hose.
3.Install the washer reservoir.

Tightening torque (Bolt)
3.9 ~ 5.9 Nm (0.4 ~ 0.6 kgf.m, 2.9 ~4.3 lbf.ft)

4.Reassemble the front bumper cover.





Tu me tiens au courant, n'est-ce pas ?

J'aurai beau tricher et fermer les yeux de toutes mes forces, il y aura toujours un chien perdu quelque part qui m'empêchera d'être heureuse. Jean Anouilh


Back to top
Visit poster’s website
Amaury


Offline

Joined: 19 May 2017
Posts: 10
Masculin Scorpion (23oct-21nov)
Vh actuel / Année: Hyundai ix 55
Motorisation: 3.0 V6 240cv
Finition/Teinte: Vera cruz / Noire
2wd-4wd-awd: 4WD
Pneus été/hiver/Dim: mixte
Coyote ou similaire: Waze

PostPosted: Tue 18 Sep 2018 - 09:11    Post subject: Moteur lave glace avant ix 55 Reply with quote

Salut les mecs,


Déjà, excusez moi de ne pas avoir répondu plus tôt...


Beaucoup de boulot.


Je m'occupe à l'instant de mon problème.


J'ai démonté le passage de roue


Je pense que c'est la pompe qui est HS


Mon iX est de septembre 2010


La bise


Amaury

Carpe Diem


Back to top
Hermine
Repreneur/sauveteur ancien site ACEBOARD années 2001 et Administrateur/Administratrice

Offline

Joined: 18 Sep 2009
Posts: 13,519
Féminin Vierge (24aoû-22sep)

PostPosted: Thu 20 Sep 2018 - 16:07    Post subject: Moteur lave glace avant ix 55 Reply with quote

Amaury wrote:
Salut les mecs,




La bise

 ça, je prends

Amaury





J'aurai beau tricher et fermer les yeux de toutes mes forces, il y aura toujours un chien perdu quelque part qui m'empêchera d'être heureuse. Jean Anouilh


Back to top
Visit poster’s website
Amaury


Offline

Joined: 19 May 2017
Posts: 10
Masculin Scorpion (23oct-21nov)
Vh actuel / Année: Hyundai ix 55
Motorisation: 3.0 V6 240cv
Finition/Teinte: Vera cruz / Noire
2wd-4wd-awd: 4WD
Pneus été/hiver/Dim: mixte
Coyote ou similaire: Waze

PostPosted: Tue 16 Oct 2018 - 21:27    Post subject: Moteur lave glace avant ix 55 Reply with quote

Salut les mecs...


J'ai démonté le moteur du lave glace..


Il était HS, complètement HS..


J'ai galéré à en commander un sur le net..


Chez Hyundai : 250 boules!!


Sur le net via Ebay : 22 dollars.. Okay


Bon 3 semaines de délai, mais ça vaut le coup


https://www.ebay.co.uk/itm/HYUNDAI-KIA-GeNuiNe-HEAD-LAMP-WASHER-MOTOR-PUMP-985103F200-/122826034297


C'est le lien pour le commander sur Ebay.


Le mec de chez Oscaro m'a donné la référence Hyundai et j'ai trouvé ailleurs.


Je le remonte demain..


Je vous tiens au jus.


La bise


Amaury

Carpe Diem


Back to top
Hermine
Repreneur/sauveteur ancien site ACEBOARD années 2001 et Administrateur/Administratrice

Offline

Joined: 18 Sep 2009
Posts: 13,519
Féminin Vierge (24aoû-22sep)

PostPosted: Wed 17 Oct 2018 - 17:35    Post subject: Moteur lave glace avant ix 55 Reply with quote

 Amaury ! merci pour les liens et le retour d'infos
